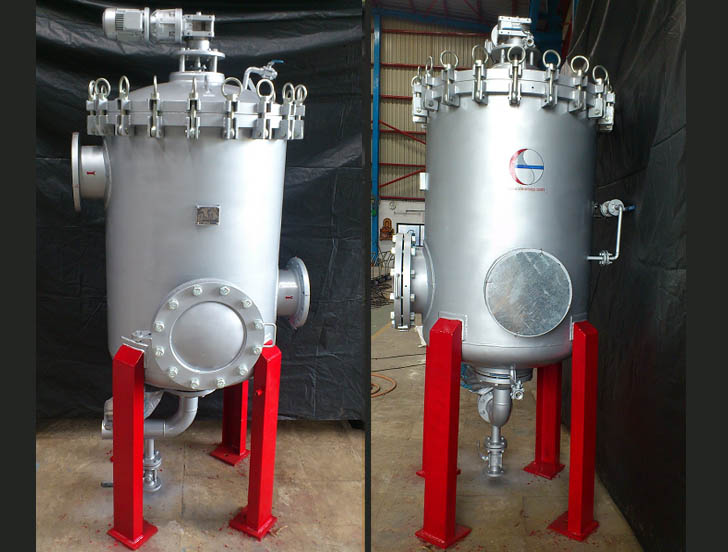

Auto Backflushing Filter (ABF)

Auto Backflushing Filter (ABF)
Auto Backflushing Filter (ABF)

(For continuous unattended filtration at high flow rates.)

WHY CHOOSE THIS FILTER?

  • Welded Wedge Wire filter elements
  • Completely closed system
  • Special filter elements designed for self back-flushing
  • In-to-out flow
  • PLC controlled with Auto/Manual modes
  • Automatic purging based on preset dp/timer
Enquire Now

Product Specification & Applications

KEY ADVANTAGES

  • Unattended continuous operation
  • Complete operator & process safety
  • Safe & hygienic operation
  • Zero emission to environment
  • Least space & maintenance requirement

TYPICAL APPLICATIONS

  • Nuclear, Chemical, Refineries
  • Petrochemical
  • Power, Hydroelectric power
  • Steel plants
  • Pharmaceuticals
  • Paints & Pigments, Dyes, etc.

OPTIONS AVAILABLE

    Customised ABF available as

  • Automatic Clear Juice Filter

Technical Specifications & Parameters

CANDLES Welded wedge wire
SIZES Upto 2000 cub.m/hr in a single unit
SERVICE RANGE 10 microns & above
